Figuring out how to manufacture plastic parts is one of those decisions that impacts everything downstream. Pick the wrong method, and you could be looking at blown budgets, quality issues, or missed deadlines. The big debate usually comes down to injection molding vs 3D printing — two completely different approaches to making stuff. Injection molding basically forces melted plastic into a shaped cavity under serious pressure to create parts that are practically identical.
3D printing takes the opposite approach, building objects one layer at a time from digital designs. Here at ZHXING Hardware, we’ve seen it all — our CNC machining services work hand-in-hand with both technologies. We’ve helped tons of customers figure out which method makes the most sense for their specific project needs.
Key Takeaways
- Injection molding absolutely crushes it for strength and surface finish when you need lots of parts (we’re talking 1,000+ units)
- 3D printing is your best friend for quick prototypes (usually ready in 1–2 weeks) and those crazy complex geometries that would cost a fortune to tool up for
- Most projects hit the crossover point — where one method becomes cheaper than the other — somewhere between 500-3,000 parts
- The material properties are night and day different — injection molded parts have that consistent strength in all directions, while 3D printed parts can be weaker between layers
- CNC machining (our specialty) creates the precision tools that make both manufacturing processes possible in the first place
What is Plastic Injection Molding?
Plastic injection molding is pretty straightforward when you break it down — you basically melt plastic pellets until they’re liquid, then force this molten goop into a custom-designed metal tool under crazy high pressure. The mold has this shaped cavity that the melted plastic fills up completely, cools down inside, and then solidifies. What pops out is an exact copy of whatever shape you designed. The parts you get have this amazing dimensional accuracy and surface finish that’s hard to beat with other methods.
The real investment here is the mold itself. These things are typically CNC machined from either aluminum or steel (depending on how many parts you need and your budget). We’re talking precision-engineered tools that ensure every single injection molded part meets exact specs and tolerances. That’s why the upfront costs can make your eyes water, but once you’ve got the mold, making thousands of parts becomes dirt cheap.

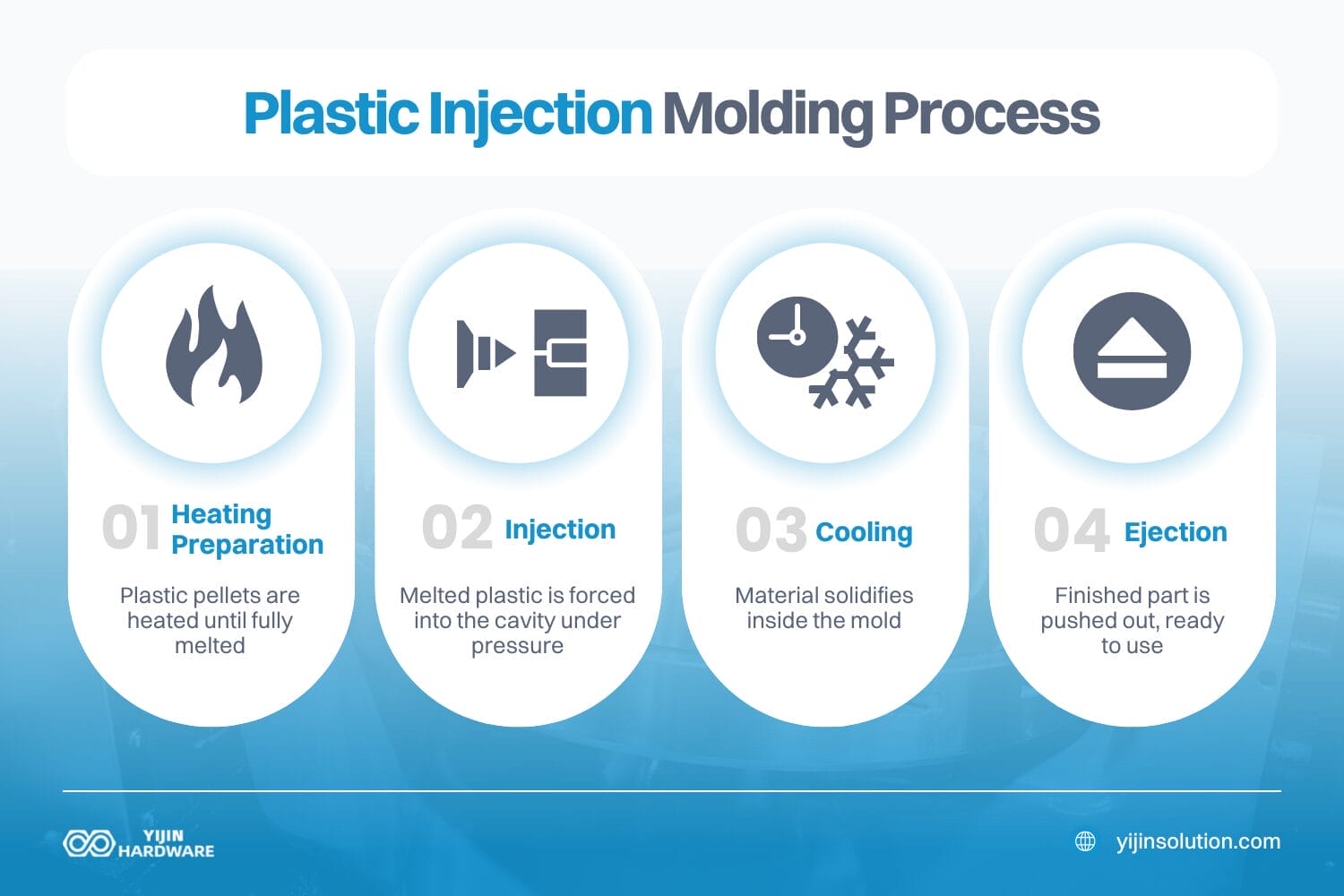

Process Steps:
- First, you prep your material — plastic pellets get heated until they’re completely melted
- Then comes injection — that melted material gets forced into the cavity under serious pressure
- Next is cooling — the material has to solidify inside the tool
- Finally, ejection — your finished part gets pushed out of the mold, ready to go
| Process Parameter | Typical Specification |
|---|---|
| Mold Temperature | 65-120 °C |
| Injection Pressure | 35-140 MPa (that’s a lot of pressure!) |
| Cycle Time | 15–120 seconds |
| Wall Thickness | 0.5-4 mm |
The cycle times are what make this process so cost-effective for big runs. Once you’re up and running, you can pump out parts every minute or so, 24/7 if needed. It’s like having a part-making machine that never sleeps.
What is 3D Printing?
3D printing — or additive manufacturing if you want to sound fancy — builds objects directly from computer designs without needing any molds whatsoever. Instead of cutting away material or forcing it into shapes, the 3D printing process basically stacks material where you need it. The machines work with all kinds of stuff — plastic filaments, powders, even liquid resins that get hardened in specific spots. The magic happens layer by layer, building up your part like a super precise cake decorator. What’s really cool is you can create these wild, complex parts that would be literally impossible to make any other way.
The technology isn’t just one thing — there are several different printing methods out there, each with its own strengths and weaknesses. Some are better for strength, others for detail, and they all work with different materials.
Common Types of 3D Printing:
- Fused Deposition Modeling (FDM): This is the one most people think of — it squirts out melted plastic filament like a high-tech glue gun, building up your part layer by layer
- Selective Laser Sintering (SLS): Way more industrial — it uses a laser to melt and fuse tiny powder particles together, which makes stronger parts
- Stereolithography (SL): This one uses liquid resin that hardens when hit with UV light — makes super smooth, detailed parts
- Projection Micro Stereolithography: The new kid on the block that can create ridiculously small, detailed features — we’re talking microscale stuff with details you need a magnifying glass to see
Each type has its own sweet spot for certain applications. FDM is cheap and accessible, SLS makes tough functional parts, SLA gives you that smooth finish, and the micro stuff is perfect when you need tiny details that’ll blow your mind.
| 3D Printing Parameter | Typical Specification |
|---|---|
| Layer Height | 0.05-0.3 mm |
| Build Volume | 200×200×200 mm to 1000×1000×1000 mm |
| Print Speed | 10-150 mm/s |
| Surface Finish | Ra 7-25 μm (before post-processing) |
How do Lead Times Compare Between these Methods?
Injection molding hits you with a lengthy 5-7 week lead time upfront. This isn’t the machines being slow — it’s the complex tool creation process. You need part design, precision mold machining, testing, and fine-tuning before production starts. The payoff? Once running, parts pop out every few seconds.
3D printing completely flips this equation. You can have prototypes in hand within 1–2 weeks since there’s no mold to create. The machine starts building immediately after finalizing your design file — perfect for rapid prototyping and design iterations.
The trade-off becomes clear during production. While injection molding pumps out parts by the hundreds per hour, each 3D printed part requires its own complete printing time. Ten parts might take ten times longer than one part, with no magical speed boost like you get once injection molding is set up.
Lead Time Factors:
- Injection Molding:
- 3D Printing:
Injection molding hammers you with hefty upfront tooling costs — anywhere from $10,000 to $100,000 depending on complexity. The flip side? Per-part costs drop dramatically as volume increases, often to mere cents per unit. This makes injection molding the clear winner for runs exceeding 1,000 units.
3D printing requires almost no setup investment but keeps a steady higher per-part cost regardless of quantity. Each piece demands its own machine time, material, and finishing work. There’s no volume discount like you get with molding.
The US government report on this topic says that the 3D printing industry has been growing fast, making about 27% more money every year for the last 30 years.
The crossover point typically lands somewhere between 500-3,000 parts, where injection molding becomes the more economical choice despite its initial investment.
Cost Structure Elements:
- Injection Molding:
- 3D Printing:
What Quality Differences Exist Between The Technologies?
Injection molding vs 3D printing strength comparison shows molded components exhibit superior mechanical properties with consistent structure in all directions (isotropy). Parts produced through this method have predictable physical characteristics with tolerances typically within ±0.1 mm for standard applications.
The difference between 3D printing and traditional methods includes layer-dependent strength variations (anisotropy) in printed items. 3D printing produces parts with visible layer lines requiring post-processing for smooth surfaces. The 3D printing and injection molding quality gap continues to narrow with advanced materials.
Quality Comparison:
| Quality Aspect | Injection Molding | 3D Print |
|---|---|---|
| Surface Finish | Ra 0.5-1.0 μm | Ra 7-25 μm |
| Tolerances | ±0.025-0.1 mm | ±0.1-0.5 mm |
| Isotropy | Fully isotropic | Anisotropic |
| Material Range | 100+ polymers | ~20 common types |
When Should You Choose Injection Molding Over 3D Printing?
Injection molding becomes the preferred manufacturing method when volume production exceeds 1,000 identical components. The high initial tooling investment becomes justified as the per-part cost drops dramatically at scale. Companies planning extensive production runs of standardized items should typically choose this approach.
Parts requiring specific material properties and consistent quality across large batches benefit most from injection molding. The technology delivers excellent durability, smooth surfaces, and dimensional stability that makes it able to produce precision parts reliably.
Ideal Applications:
- High-volume consumer products
- Automotive components
- Medical devices requiring certification
- Thin-walled containers
- Components requiring tight tolerances
When is 3D Printing the Better Manufacturing Choice?
3D printing makes more sense when producing small batch quantities below 100 units. The minimal setup costs and quick turnaround make it ideal for testing concepts or fulfilling low volume production run needs without significant financial commitment.
Unlike injection molding, 3D printing supports greater design complexity with internal structures, lattices, or organic shapes that would be impossible with molds. The printing technologies create parts with integrated features that would require multiple assembly steps if made through other methods.
Ideal Applications:
- Customized medical implants
- Specialized industrial components
- Complex geometries with internal features
- Prototype development and testing
- Architectural models and visualizations
How does CNC Machining Complement these Technologies?
CNC machining creates precision tools for both manufacturing processes. For plastic injection, our machine parts the molds from aluminum or steel blocks. At ZHXING Hardware, our advanced 5-axis capabilities enable creation of complex mold geometries with exceptional accuracy.
3D printed parts often benefit from CNC machining as secondary finishing to improve dimensional accuracy and surface finish. Our integrated approach allows for printing on plastic parts that then receive precision machining for critical features requiring tighter tolerances.
Hybrid Manufacturing Approaches:
- Low-Volume Injection: Creating affordable tooling through combined methods
- Conformal Cooling Channels: Machined cooling systems in molds that follow part contours
- Metal Inserts: Incorporating machined components into printed assemblies
- Precision Finishing: Using CNC to achieve tight tolerances on printed components
What About Environmental Considerations?
The injection molder uses less energy per part in high-volume production compared to additive manufacturing. The process becomes increasingly efficient as production scales, with material waste limited primarily to runners and sprues that can often be recycled.
What plastic is used in 3D printing affects environmental impact. The technology minimizes waste by using only necessary material, though support structures create some unavoidable scrap. Energy consumption per component remains relatively constant regardless of quantity produced.
Sustainability Factors:
- Material waste generation and recyclability
- Energy consumption per part
- Transportation impacts (local production possibilities)
- End-of-life considerations and material recovery
Let Us Help You Choose The Right Manufacturing Method
At ZHXING Hardware, our expertise in precision CNC machining gives us unique insight into how injection printing and 3D technologies can work together. We offer comprehensive manufacturing consultation to determine whether to use injection molding or 3D printing for your specific project requirements.
Contact us today to discuss your production needs and discover how our integrated manufacturing capabilities can deliver superior results for your next project.
FAQs on Plastic Injection Molding vs 3D Printing
Can 3D printing replace injection molding?
3D printing cannot completely replace injection molding due to fundamental limitations in production speed, material properties, and cost at scale. Injection molding can produce thousands of parts in the time it takes to print dozens of equivalent components with current technology.
Material performance gaps persist between the technologies, with injection molded parts typically offering superior strength and durability. While 3D printing’s materials continue to improve, they haven’t yet matched the full range of injection molding resins.
The two approaches serve complementary roles in modern manufacturing, with 3D printing excelling in prototyping and injection molding dominating mass production.
What are the disadvantages of injection molding?
Injection molding requires substantial upfront investment, with molds costing between $10,000-$100,000 depending on complexity and expected production life. This capital expense creates financial risk, especially for unproven products with uncertain market demand.
Design freedom is limited once a mold is created, as modifications require expensive tool reworking or complete replacement. The process imposes various design constraints including draft angles, avoiding right angles, maintaining uniform wall thickness, and consideration of parting lines.
What is the most profitable thing to 3D print?
Custom medical devices represent one of the most profitable applications, with patient-specific implants, surgical guides, and anatomical models commanding premium prices. The technology’s ability to create perfectly matched components based on patient imaging data delivers exceptional value that justifies higher costs.
Low-volume, high-complexity parts for aerospace and specialized industrial applications offer substantial profit margins. Components that would be prohibitively expensive or impossible to manufacture through traditional methods can command prices reflecting their unique value.
