White Paper on Precision Aluminum Alloy Processing Technology

Industry background and craftsmanship value

In high-end manufacturing, lightweighting, high precision, and high reliability have become core development directions. Aluminum alloy, with its low density (approximately 2.7g/cm³, only one-third that of steel), high specific strength, corrosion resistance, excellent thermal and electrical conductivity, and strong recyclability, has become a key material in industries such as aerospace, new energy vehicles, electronics, and precision instruments. As downstream industries continue to demand higher dimensional accuracy (e.g., micron- to nanometer-level tolerances), surface quality (roughness Ra ≤ 0.02μm), and the ability to form complex structures, precision aluminum alloy processing has evolved from traditional mechanical processing to a “high-precision, intelligent, and green” approach. The level of technology directly determines the performance and core competitiveness of high-end equipment.

Precision aluminum alloy material properties and processing adaptability

Precision aluminum alloy processing requires first clarifying the impact of material properties on the process:

1. Physical properties: Aluminum alloy has a high thermal conductivity (approximately 100-250W/(m·K)). During machining, heat is easily transferred to the tool and workpiece, which can lead to increased tool wear and thermal deformation of the workpiece. At the same time, its low elastic modulus (approximately 70GPa) easily causes plastic deformation during clamping, requiring optimized clamping solutions.
2. Mechanical properties: Different series of aluminum alloys (such as 6-series (Al-Mg-Si) and 7-series (Al-Zn-Mg-Cu)) exhibit significant differences in mechanical properties. 6-series aluminum alloys offer excellent plasticity and machinability, making them suitable for machining complex structural parts. 7-series aluminum alloys exhibit high strength (tensile strength exceeding 600 MPa), but also exhibit high cutting resistance, requiring targeted tool selection and cutting parameters.
3. Chemical properties: Aluminum alloy easily reacts with oxygen to form an oxide film (Al₂O₃), which has a higher hardness than the substrate (HV approximately 1500). This can easily cause tool “edge chipping” during processing. The oxide film must be removed in the pretreatment stage, and wear-resistant tools must be selected.

Based on the above characteristics, precision machining needs to design the process route around the three core goals of “controlling deformation, improving precision, and reducing losses”.

Precision aluminum alloy core processing technology

Pretreatment process

1. Heat Treatment: Through solution treatment (heating the aluminum alloy to 500-550°C, holding, and rapid water cooling) and aging treatment (holding at 120-180°C for several hours), the material’s hardness and toughness are adjusted. For example, after T6 treatment, 7075 aluminum alloy can reach a hardness of HV150-180, meeting machining requirements while ensuring the strength of the finished product.
2. Surface pretreatment: Use chemical cleaning (such as nitric acid-hydrofluoric acid mixed solution) to remove oxide film and oil stains to prevent impurities during processing from affecting precision; for complex structural parts, stress relief is required (such as low-temperature stress relief annealing, keeping warm at 120-150℃ for 2–4 hours) to reduce deformation after processing.

Cutting process

1. Precision turning and milling: Use high-precision CNC machine tools (positioning accuracy ≤ 0.001 mm) with carbide tools (such as WC-Co alloy) or cubic boron nitride (CBN) tools. Cutting parameters require dynamic optimization: For 6-series aluminum alloys, the cutting speed can be set to 300-500 m/min, the feed rate 0.1-0.2 mm/r, and the back cut depth 0.5-1 mm. For 7-series high-strength aluminum alloys, the cutting speed should be reduced to 200-300 m/min, and tool cooling (such as oil mist lubrication) should be increased to prevent tool sticking.
2. Ultra-precision grinding: For high-precision flat or cylindrical surfaces (tolerance ≤ 0.0005 mm), ultra-hard abrasive grinding wheels (such as diamond wheels) are used, combined with constant pressure grinding and online detection technology. For example, for aluminum alloy bearing seats used in aerospace applications, surface roughness Ra ≤ 0.01μm is achieved through grinding wheel speeds of 8,000-12,000 rpm and micro-feed grinding depths of 5-10μm, while geometric and positional errors are controlled within 0.001 mm.
3. Five-axis machining: For complex curved parts (such as new energy vehicle motor housings and aircraft engine blades), a five-axis CNC machining center is used to achieve single-clamping machining of multiple surfaces, reducing clamping errors (typically by 30%-50%). During machining, tool paths are optimized using CAM software to avoid tool interference. Adaptive feed control is also used to adjust parameters in real time based on cutting load to ensure machining stability.

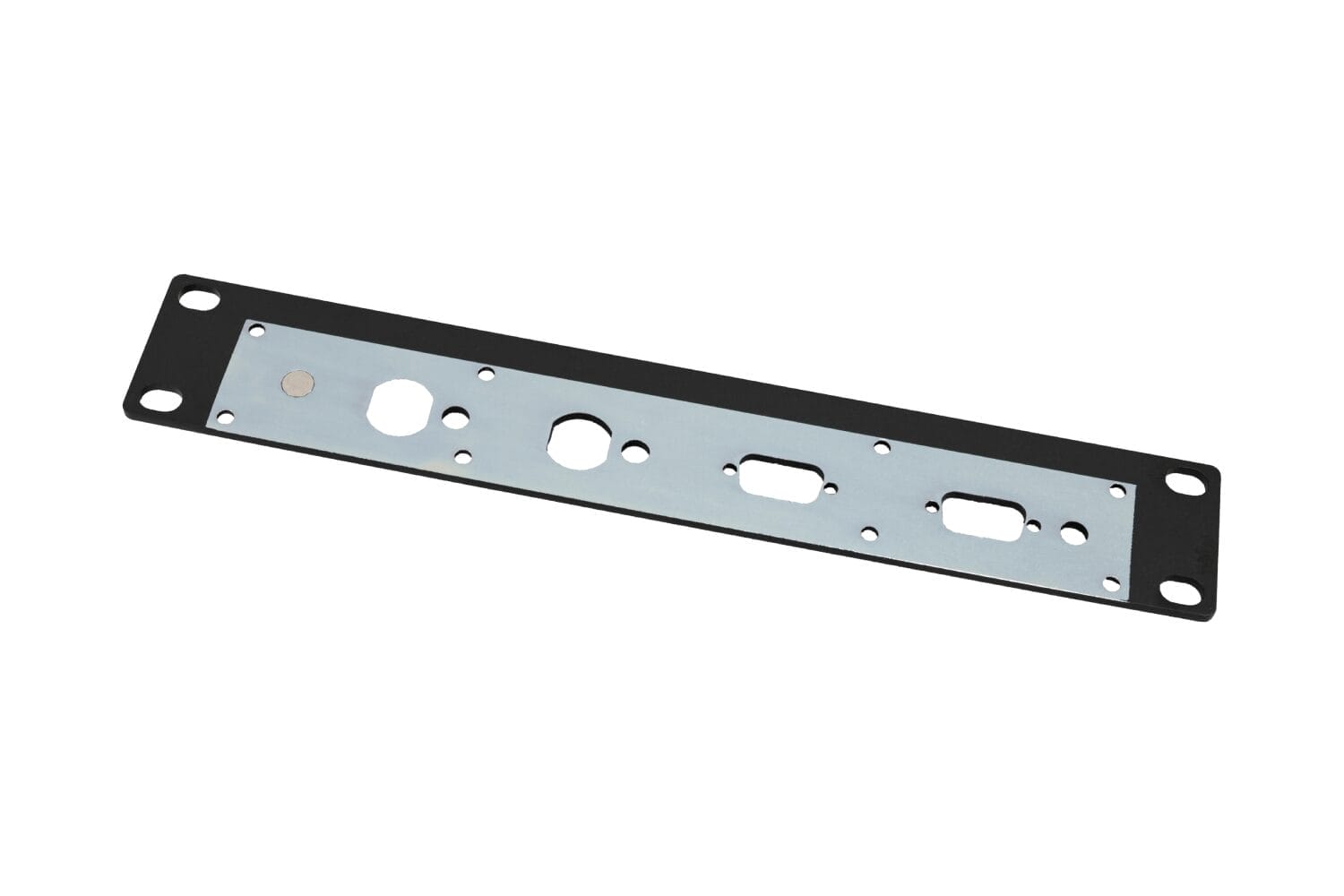

Molding process

1. Precision die-casting: Suitable for large-scale complex structural parts (such as 5G base station heat sinks), it uses vacuum die-casting technology (vacuum degree ≤ 50mbar) to reduce internal porosity in the casting (porosity ≤ 1%). It then undergoes T6 heat treatment and precision cutting and finishing achieving a dimensional tolerance of ±0.05 mm.
2. Extrusion Molding: Profiles are extruded through precision dies (tolerance ≤ 0.02 mm) and then straightened by drawing (straightness ≤ 0.1 mm/m). These are used for high-precision guide rails or frame components. For example, aluminum alloy guide rails for electronic equipment can achieve a straightness of 0.05 mm/m after extrusion, drawing, and milling, meeting the requirements of precision sliding.
3. 3D printing (additive manufacturing): For small-batch, complex topology parts (such as lightweight aerospace brackets), selective laser melting (SLM) technology is used, using aluminum alloy powder (particle size 15-53μm) as raw material, laser power 200-400W, scanning speed 800-1200 mm/s, and forming accuracy of up to ±0.1 mm. Subsequent hot isostatic pressing (HIP) treatment (temperature 500-550℃, pressure 100-150MPa) eliminates internal defects and improves mechanical properties.

Surface treatment process

1. Anodizing: In a sulfuric acid electrolyte (concentration 15%-20%), with aluminum alloy as the anode, electrolysis is carried out at a DC voltage of 10-20V to form an oxide film (Al₂O₃) 5-20μm thick with a hardness of HV300-500, which improves wear resistance and corrosion resistance and is suitable for electronic equipment casings and precision instrument panels.
2. Physical vapor deposition (PVD): Using magnetron sputtering technology, hard coatings such as TiN and CrN are deposited on the surface of aluminum alloy (thickness 2-5μm). The surface hardness can reach HV1500-2000, and the friction coefficient is reduced to below 0.2. It is suitable for high-load precision parts (such as bearings and gears).
3. Chemical conversion coating treatment: Through treatment with chromate or chromium-free conversion solution (such as zirconate), a 1-3μm conversion film is formed to improve the adhesion of subsequent coatings. It is often used for the bottom protection of aerospace parts.
6.
8.

Key Technical Challenges and Solutions

Processing deformation control

Challenges: Aluminum alloy has a low elastic modulus, and cutting and clamping forces can easily cause workpiece deformation. Heat conduction is fast, and processing heat can easily cause thermal deformation (for example, the flatness error of thin-walled parts after processing exceeds 0.02 mm).

Solutions: 1. Use flexible clamping (such as vacuum suction cups and elastic clamps) to reduce clamping force; 2. Optimize cutting parameters and adopt high-speed and light cutting (small back cutting depth and high feed rate) to reduce cutting heat; 3. Introduce a constant temperature processing environment (temperature fluctuation ≤±0.5°C) and combine it with online temperature monitoring to compensate for thermal deformation in real time; 4. For complex thin-walled parts, adopt a “step-by-step processing + stress relief” process, performing low-temperature stress relief treatment every 1-2 processing steps.

Accuracy and stability assurance

Challenges: Tool wear (for example, when carbide tools are machining 7-series aluminum alloys, the wear rate is 2-3 times faster than when machining steel) and machine tool thermal drift (positioning accuracy drops by 0.002-0.003 mm after long-term machining) can easily lead to accuracy fluctuations.

Solution: 1. Select specialized tools (such as ultrafine-grain carbide tools and diamond-coated tools) to extend tool life. 2. Implement online tool wear monitoring (such as acoustic emission sensors and force sensors) to automatically change tools when the wear threshold is reached. 3. Perform thermal error compensation on machine tools. Use temperature sensors to collect the temperatures of key components (spindles and guideways), establish a thermal error model, and correct coordinates in real time. 4. Introduce a closed-loop control machining system, equipped with a laser interferometer and a three-dimensional coordinate measuring machine for online inspection, and automatically adjust machining parameters when accuracy exceeds tolerances.

Green processing transformation

Challenges: Traditional cutting fluids (such as emulsions) are used at a rate of 10-20 L/h, which can easily cause environmental pollution. The recycling rate of processing waste is low (approximately 70%), resulting in serious waste of resources.

Solutions: 1. Promote dry cutting and minimal quantity lubrication (MQL) technology, using only 0.05-0.5L/h of MQL to reduce cutting fluid pollution. 2. Use environmentally friendly cutting fluids (such as plant-based cutting fluids) with a biodegradability rate of ≥90%. 3. Establish a waste recycling system. Processing waste is sorted, smelted, purified (purity can reach over 99.5%), and then re-pulverized or cast into ingots, increasing the recovery rate to over 95%.

Application Scenarios and Process Adaptation Cases

1. Aerospace: Aircraft landing gear parts (7075 aluminum alloy) are manufactured using a process called “solution aging → five-axis milling (accuracy ±0.005 mm) → ultra-precision grinding → PVD coating” to ensure strength and wear resistance. Satellite brackets (6061 aluminum alloy) are formed via SLM 3D printing, followed by HIP treatment and precision milling to achieve lightweighting (30% weight reduction) and high precision (tolerance ±0.1mm).
2. New energy vehicle field: Battery trays (6082 aluminum alloy) adopt the “precision extrusion → laser welding → CNC milling (flatness ≤ 0.05 mm) → anodizing” process to meet lightweight and corrosion resistance requirements; motor rotors (2024 aluminum alloy) use ultra-precision turning (roundness ≤ 0.001 mm) and dynamic balancing correction to ensure high-speed rotation stability.
3. Electronic information field: 5G base station filters (5052 aluminum alloy) adopt the “precision die-casting (vacuum degree ≤ 30mbar) → T6 heat treatment → CNC drilling (aperture tolerance ±0.01mm) → surface silver plating” process to achieve improved signal transmission efficiency; laptop computer casings (6063 aluminum alloy) undergo “extrusion → drawing → CNC milling (thin wall thickness 0.5mm, tolerance ±0.02mm) → anodizing (oxide film thickness 10μm)” to achieve both lightweight and aesthetics.

Development Trends and Future Directions

1. Intelligent upgrade: Introducing the Industrial Internet and AI technologies to achieve digital management and control of the entire machining process. For example, AI algorithms are used to optimize cutting parameters (increasing efficiency by 20%-30%), and digital twin technology is used to simulate the machining process and predict process risks in advance.
2. Breakthrough in ultra-precision machining: Research and development of nano-scale machining technologies, such as atomic force machining and ion beam machining, to achieve an aluminum alloy surface roughness of Ra ≤ 0.005μm, meeting the needs of ultra-precision fields such as quantum devices and optical components.
3. Integration of composite processes: Develop “additive + subtractive” composite processing (such as SLM + five-axis milling integrated equipment) to form complex structural parts in one step, improve processing efficiency by 40%, and reduce precision fluctuations by 50%; explore “cutting + surface treatment” continuous processes to reduce process conversion errors.
4. Collaborative innovation in materials and processes: Develop specialized aluminum alloy materials (such as high-temperature resistant aluminum alloys and high-thermal conductivity aluminum alloys) for specific scenarios, and simultaneously optimize processing techniques. For example, develop ceramic tools and high-temperature cutting processes suitable for high-temperature aluminum alloys to expand the application of aluminum alloys in high-temperature components of aircraft engines.

Final Thoughts

Precision aluminum alloy processing is a core supporting technology for high-end manufacturing. Its development must focus on three key themes: precision improvement, efficiency optimization, and green transformation. Through in-depth adaptation of material properties and processes, breakthroughs in key technologies, and intelligent upgrades, it will meet the evolving needs of downstream industries. In the future, with the integrated application of interdisciplinary technologies (such as AI, digital twins, and new materials), precision aluminum alloy processing will move towards higher precision, higher efficiency, and greater sustainability, providing stronger impetus for the development of the global high-end manufacturing industry.
