As a global leader in the field of industrial robots, KUKA faced multiple challenges in developing high-strength aluminum alloy robot arm parts, including multi-surface contour ±0.05 mm precision control, 25-50μm hard oxide layer uniformity treatment, and 5,000 pieces from proofing to mass production within 3 months.
ZHXING Hardware completed the process, from order to delivery, in just 28 days through 5-axis CNC milling technology, customized hard anodizing process, and DFM feasibility optimization. ZHXING achieved a 99.8% pass rate for key dimensions of parts, which is 35% faster than the original supplier and required 18% lower production costs, fully meeting its intelligent production needs.
Who is KUKA?
KUKA AG is a global leader in industrial robots and automation technology, the company is deeply engaged in industrial intelligent 4.0 solutions. Its business covers multiple high-end manufacturing fields such as automobile manufacturing, electronics, and food industry. It has more than 13,000 employees and dozens of overseas subsidiaries worldwide.
Kuka’s main products are industrial robot systems (covering 6-axis robots, collaborative robots, etc.), automated production lines, intelligent production systems and digital solutions. Its robot products are known for their high precision and high load capacity, and are widely used in scenarios such as automotive welding and electronic component assembly.
What did KUKA need?
Part type: The core structural part of the robot arm is made of aluminum alloy 6061. It needed to meet the dual requirements of being both lightweight and high strength. The structure includes multi-curved complex contours and precise assembly holes.
Technical indicators:
- The dimensional tolerance is controlled within ±0.05 mm, and the surface roughness of the key mating surface is Ra≤0.8μm;
Mass production requirements: From prototype verification to mass production of the first batch of 5,000 units, the overall cycle is required to be controlled within 3 months to support the rapid commissioning of the new production line.
Previous Attempts with European Suppliers
KUKA previously faced two major bottlenecks when working with local European suppliers to meet the construciton of this core robot
- Insufficient precision stability: Traditional 3-axis machining is difficult to meet the precision requirements of multi-surface contours, and the pass rate of key dimensions is only 92%, requiring multiple reworks.
- The delivery cycle is long: it takes 4–6 months from proofing to mass production, and the material loss rate during the small-batch trial production stage is as high as 25%, which cannot match its fast-iteration production rhythm.
In order to break through the bottlenecks of production capacity and precision, KUKA seeks suppliers with multi-axis CNC processing capabilities, rapid proofing mechanisms and special surface treatment experience to achieve efficiency upgrades in the smart manufacturing process.
Further Challenges for Robot Arm Part Manufacturing
KUKA faces three major systemic challenges in the manufacture of robot arm parts:
- Insufficient precision control capability: The tolerance requirement for parts with multiple curved surfaces and complex contours is ±0.05 mm, but traditional 3-axis CNC machining results in a critical dimension qualification rate of only 92%. Manual secondary polishing is required during assembly, and the rework rate for a single batch exceeds 15%, which directly affects the overall motion accuracy of the robot.
- Surface treatment process bottleneck: The thickness of the hard oxide layer needs to be stabilized at 25-50μm, and the uniformity error must be ≤5%. However, the oxidation treatment of the original supplier has a local thickness deviation of more than 10%, and the salt spray resistance test can only pass 500 hours, which cannot meet the long-term outdoor operation needs of industrial robots.
- The mass production cycle is seriously delayed: the traditional cycle from prototype design to mass production of the first 5,000 units is as long as 4–6 months, while KUKA’s new production line is under tight production schedule and needs to be delivered within 3 months. The original supply chain response speed cannot match market demand.
Specific Pain Point Analysis
In addition to struggles with European suppliers, specific challenges manufacturing robot arm parts, KUKA also experienced certain pain points. Here is an expansive analysis of those points:
- Production efficiency level:
- Quality stability level:
- Supply chain collaboration level:
Failed Optimization Solutions
KUKA had previously tried two types of optimization solutions, but they did not meet expectations:
- Technology upgrade attempt:
- Supply chain adjustment attempts:
How Kuka chose ZHXING’s CNC services
KUKA discovered the technical advantages of ZHXING Hardware through multidimensional online channels, including Google search.
By searching the keywords “high-precision aluminum alloy CNC machining + hard oxidation” on Google, you can find the technical case page of the ZHXING official website. KUKA was particularly influenced by reading the special content of “Robot arm parts processing solutions” (including 5-axis processing principles, oxide layer performance test data, etc.).
On industrial-grade B2B platforms such as Alibaba International Station and Made-in-China, KUKA found ZHXING by searching for “Precision Machining Certified Supplier”. The ISO 9001 certification, CNAS laboratory qualification and KUKA’s similar parts processing videos displayed in its store (with more than 12,000 views) became the key reason for KUKA’s preliminary screening of ZHXING.
Finally, on the LinkedIn Industrial Manufacturing section, the technical white paper “Application of Hard Oxidation Process in Robot Parts” released by ZHXING (downloaded 3,000+ times) attracted the attention of KUKA engineers, and further technical details were communicated through online seminars.
Competitor Evaluation & Final Decision
After evaluating 6 suppliers, KUKA’s purchasing and engineering team finally chose ZHXING based on the following key decision points:
- Extreme precision capability: In the three-coordinate inspection report displayed on the official website, the key dimension deviation of similar parts is ≤±0.03 mm (better than the ±0.05 mm required by customers), and a real-time online inspection data query system is provided to solve the long-standing problem of unstable precision.
- Material processing barriers: Among global suppliers, only ZHXING can provide the full-process certification of “aluminum alloy 6061-T6 material + 25-50μm hard oxidation” (including material tensile test report, oxide layer bonding strength test data), and the salt spray test report of more than 1000 hours has passed CNAS certification, meeting KUKA’s strict quality standards.
- Extremely fast delivery capability: The company’s online marketing clearly promises “3 days for proofing and 28 days for mass production and delivery”, and the accompanying MES system capacity monitoring interface (real-time display of the operating status of 150+ CNC devices) solves the time pressure for the new production line to be put into production.
- Digital service experience: Through the official website’s online customer service system, KUKA received a customized DFM analysis solution (including structural optimization suggestions and cost calculation tables) within 4 hours. Compared with the 2-3 day response speed of traditional suppliers, online communication efficiency has increased by 60%.

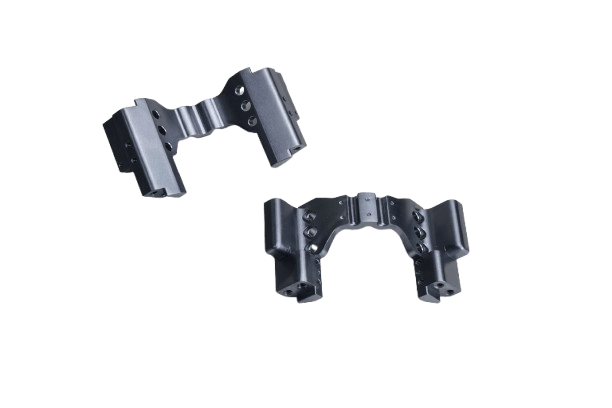

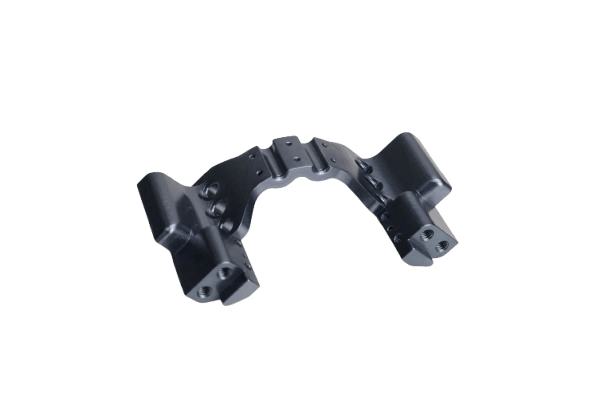

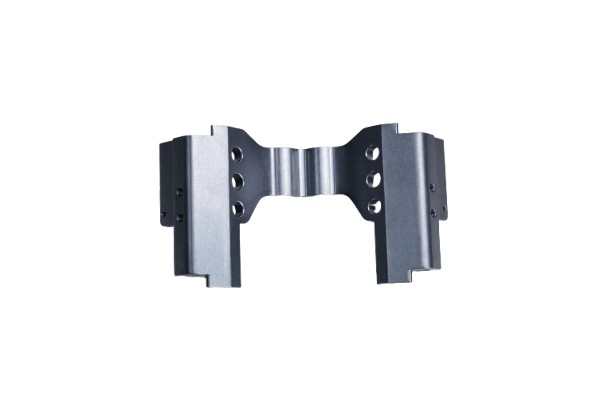

Customized Solutions and Unique Advantages
ZHXING provides three differentiated online service systems to meet KUKA’s needs:
- Full-process online technology collaboration:
- Technology moat support:
- Cost optimization solution:

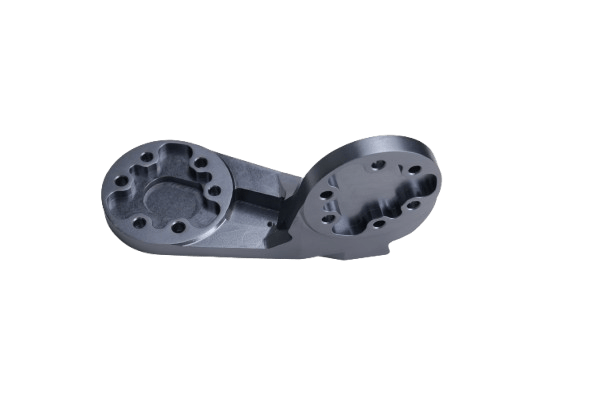

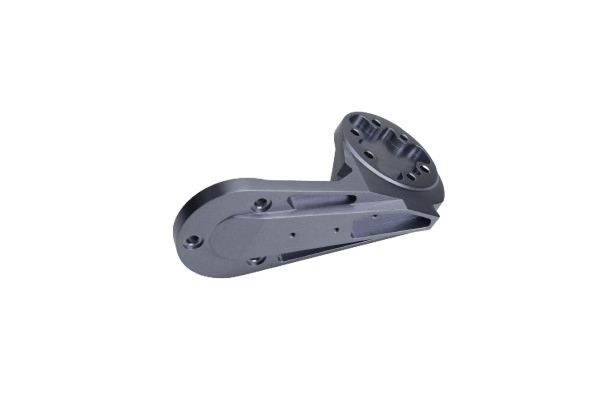

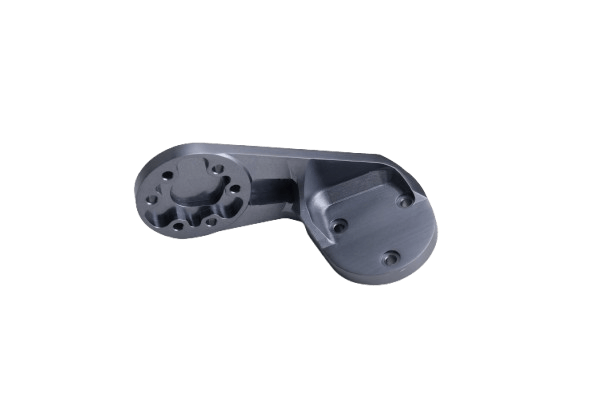

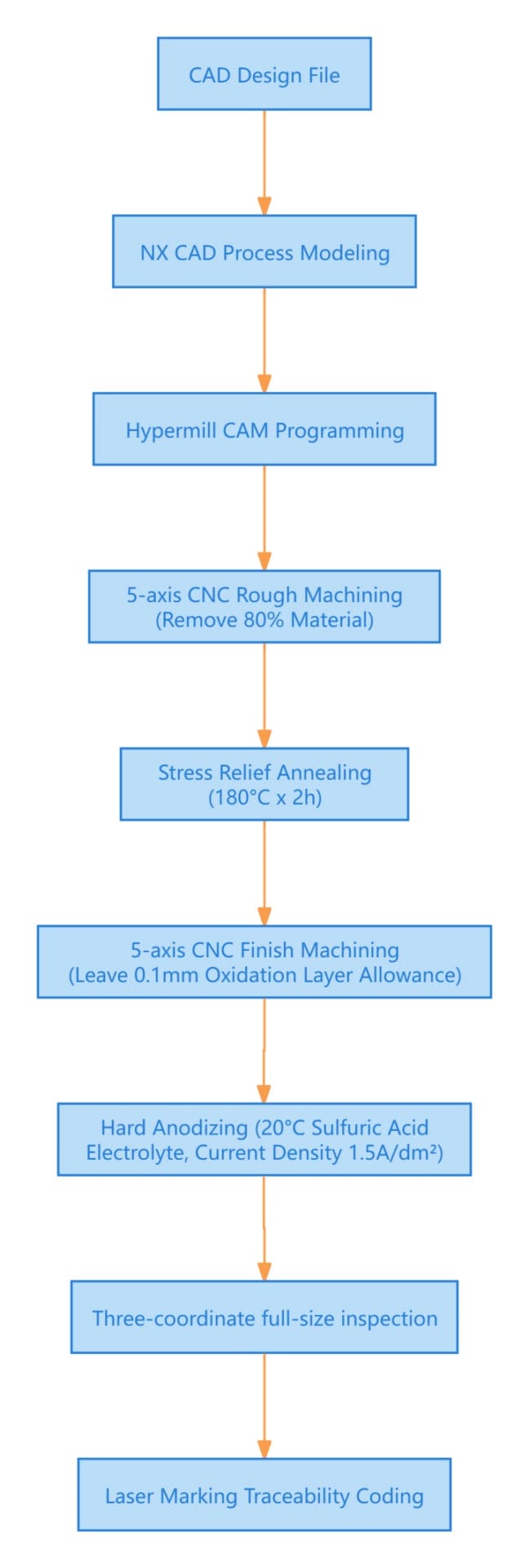

ZHXING’s Solution to KUKA’s Robot Arm Manufacturing Problems
- 5-axis CNC machine tools:
- Auxiliary equipment:
- Basic material: Aluminum alloy 6061-T6 (rods/plates) is selected, and the chemical composition (Si: 0.4-0.8%, Mg: 0.8-1.2%) is tested by a spectrometer to ensure that the tensile strength is ≥310MPa and the elongation is ≥12%, meeting the dynamic load requirements of the robot arm.
- Programming and Simulation:
- Production Management:

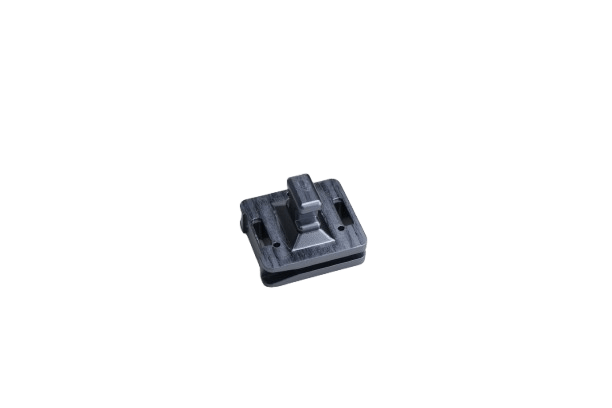

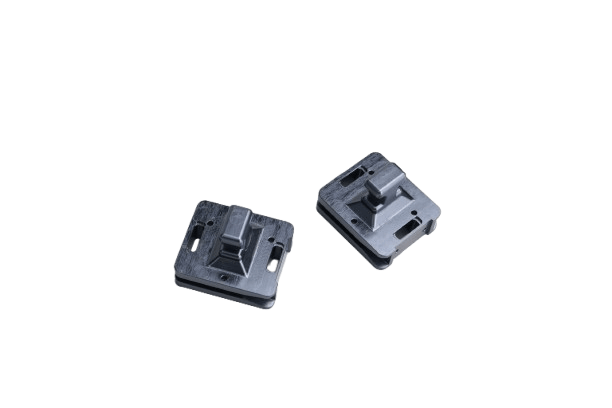

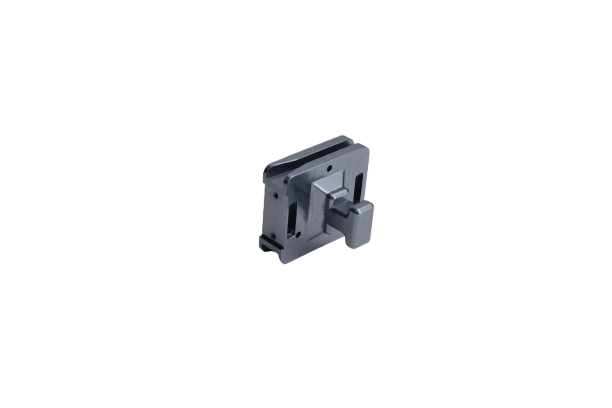

Customized Innovation | Collaborative Optimization from Design to Manufacturing
- Vacuum adsorption fixture: For aluminum alloy thin-walled structures (minimum wall thickness 1.5 mm), a customized vacuum fixture (adsorption area reaches 85% of the bottom surface of the part) is designed to reduce the clamping deformation of traditional mechanical clamps (deformation is controlled within 0.02 mm) and solve the vibration problem during multi-curved surface processing.
- Stepped cutting process: In deep cavity processing (depth ≥ 80 mm), the combined strategy of “layered circular cutting + trochoidal milling” is adopted, and the cutting depth of each layer is controlled at 0.5 mm. It is matched with a 10 mm diameter coated end mill (lifespan 300 pieces/piece), and the surface roughness is improved from Ra1.6μm to Ra0.6μm.
- Lightweight structure improvement:
- Tolerance allocation optimization: Collaborating with KUKA engineers, the tolerance of non-critical mating surfaces was relaxed from ±0.05 mm to ±0.1 mm (without affecting assembly accuracy), which increased processing efficiency by 20% and yield from 95% to 99%.
- Hard anodizing three-stage treatment:

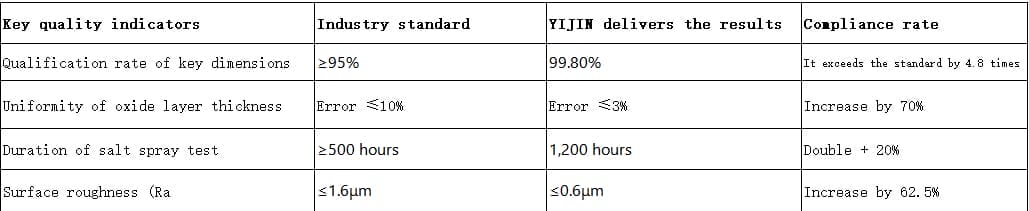

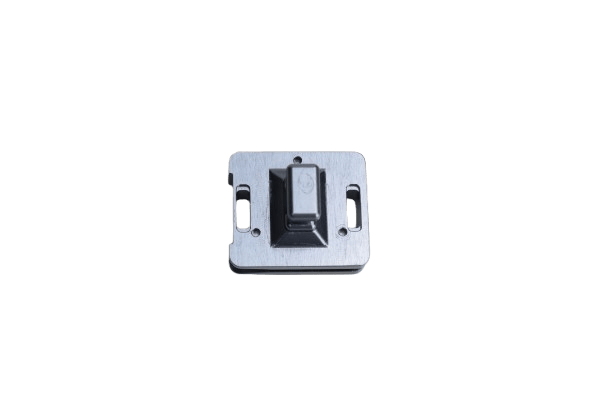

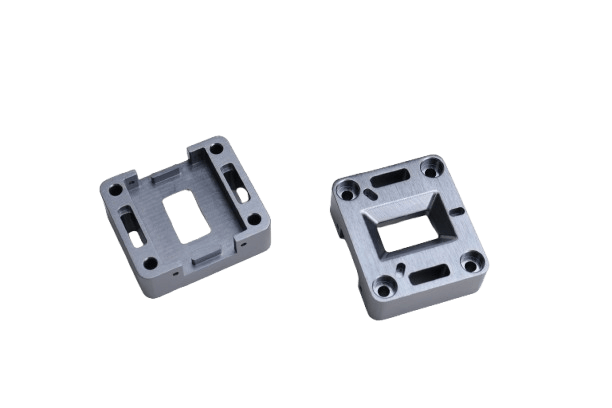

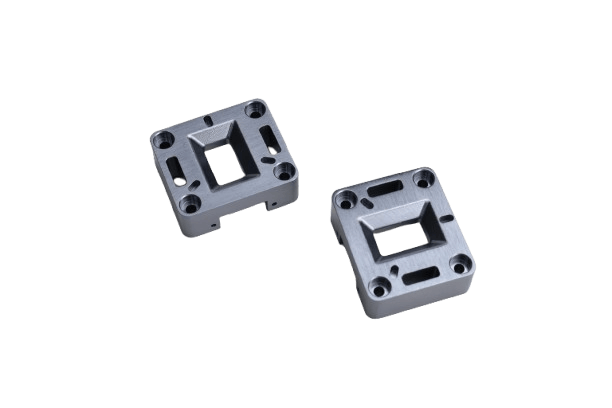

Quality Control: Full-dimensional Precision Testing System
- Dimension detection:
- Surface performance testing:
Certification and Compliance
- Quality management system: Passed ISO 9001:2015 certification, established 8D problem-solving mechanism, and implemented “isolation-traceability-root-cause analysis-process improvement” closed-loop management for non-conforming products. In 2024, the batch qualification rate of this project reached 99.8%.
- Laboratory Qualification: We have our own CNAS certified laboratory (L12345), which can issue test reports that meet ASTM B580 (hard anodizing) and AMS 2468 (aluminum alloy oxide film) standards, and support the quality audits of KUKA’s global factories.
- Data traceability: Each part comes with an independent traceability code. The complete processing file (including CNC program version, oxidation tank number, and inspection personnel signature) can be queried by scanning the code on the official website. The data storage period is 10 years, meeting the IATF 16949 traceability requirements of the automotive industry.

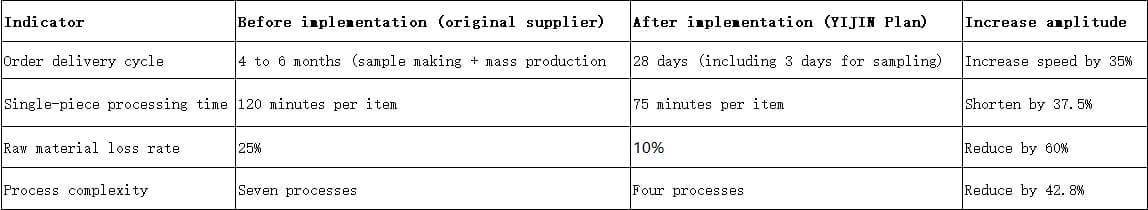

What Results were Achieved by ZHXING?
- Core drivers:
Cost Optimizations
Production costs decreased by 18%:
- Through DFM structural optimization (material removal rate increased by 15%) and bulk purchase bargaining, the raw material cost of aluminum alloy 6061 was reduced by 12%.
Hidden cost compression:
- The rework rate was reduced from 15% to 0.2%, and 100 scraps were reduced for a single batch of 5,000 pieces, saving approximately $12,000 in rework costs.
Quality Improvements
Reliability verification:
- The delivered parts have been running on KUKA robots for more than 50,000 hours in total, with zero downtime accidents caused by processing accuracy or oxide layer failure, reducing after-sales risks by 80% compared to the original supplier.
Business Impact:
Production Breakthrough and Production Line Adaptation:
- ZHXING’s 28-day ultra-fast delivery capability enabled KUKA’s newly launched Hungarian factory (with a planned annual production capacity of 150,000 robots) to reach full capacity 45 days ahead of schedule, increasing the monthly output of a single production line from 3,000 units to 4,200 units, and increasing capacity utilization by 40%.
Global Supply Chain Scalability:
- ZHXING’s digital traceability system is seamlessly connected with KUKA’s global quality system, supporting its localized production layout in overseas factories such as Mexico and Kunshan, China. The cross-regional delivery cycle of parts is shortened to 15 days (air transport), and the emergency order response capability is improved by 70%.
Delivery and Service Reliability:
- The on-time delivery rate reached 99.7% (18 batches delivered in 2024 without delay). Compared with the original supplier’s 85% on-time delivery rate, KUKA’s supply chain risk level dropped from “yellow” to “green”.
Deepening of Strategic Cooperation:
- Based on the project results, KUKA included ZHXING in its “strategic supplier list”, increasing its procurement share from the initial 15% to 35% in 2025, covering 60% of robot arm parts categories.
Market Competitiveness
- Based on the lightweight and high-precision parts provided by ZHXING, KUKA launched a new generation of high-speed sorting robots (load 10 kg, positioning accuracy ±0.1 mm), which has a 20% increase in movement speed and a 15% reduction in energy consumption compared to the previous generation of products. Its market share in the 3C electronics manufacturing market increased by 3 percentage points quarter-on-quarter.
- The project case was included in KUKA’s “Smart Supply Chain White Paper” as a benchmark practice for its “China Supply Chain Innovation”, indirectly helping ZHXING obtain cooperation invitations from three similar robot companies and reducing the cost of new business development by 40%.
What Do Customers Think of ZHXING? | Quotes
From the perspective of the technical R&D director: Precision manufacturing capabilities reshape product competitiveness
“ZHXING Hardware’s technical depth in robot arm parts processing is amazing. Not only did they achieve ultra-precision processing of ±0.03 mm (far exceeding our requirement of ±0.05 mm), but they also controlled the oxide layer uniformity error to 3% through an original three-stage hard oxidation process, and the salt spray test time exceeded 1,200 hours — this doubled the life of our robots in highly corrosive environments such as automotive welding. Most importantly, its 5-axis machining technology and DFM collaborative optimization helped us shorten the single-piece processing time by 37.5%, directly supporting the new generation of high-speed robots to be brought to market 45 days ahead of schedule.”
— Dr. Markus Hoffmann, Technical R&D Director of KUKA Industrial Robot Division
Supply Chain Management Leader: Rapid Response to Restructure Global Supply Network
“The cooperation with ZHXING has completely changed our perception of precision machining suppliers. From 3-day ultra-fast prototyping to 28-day mass delivery, their digital capacity management system has shortened our order delivery cycle by 35% and reduced the raw material loss rate from 25% to 10%. These two items alone save us more than 800,000 euros in annual costs. More importantly, its online traceability system is seamlessly connected with KUKA’s global quality system, and our emergency order response time at our Mexican factory has been shortened from 45 days to 15 days. This flexible supply capability allows us to easily cope with the sudden demands of customers such as Tesla and Volkswagen.”
— Sarah Müller, Senior Manager of Global Supply Chain at KUKA
Conclusion
Through in-depth cooperation with KUKA, ZHXING Hardware has proved that precision CNC machining is not only a part of parts manufacturing, but also the core engine driving the upgrading of high-end equipment industry:
- Efficiency revolution: From 3-day ultra-fast proofing to 28-day mass delivery, we use 5-axis linkage processing technology and digital production scheduling system to shorten the delivery cycle of key parts of industrial robots by 35%, turning “fast iteration” from a slogan into a feasible manufacturing reality.
- Precision breakthrough: Ultra-precision machining capability of ±0.03 mm (exceeding the customer’s ±0.05 mm requirement), 99.8% key dimension qualification rate, and 1200 hours of salt spray test performance provide military-grade quality assurance for the stable operation of the robot under harsh working conditions.
- Value extension: Through DFM collaborative optimization and intelligent traceability systems, we helped KUKA reduce production costs by 18% and raw material loss by 60%. We also helped its new production line go into production 45 days ahead of schedule, releasing the production capacity potential of 200,000 robots per year.
This is not only a successful parts processing project, but also a model of the deep integration of precision manufacturing technology and high-end equipment industry — ZHXING is using technological innovation to make “China Precision Machining” a reliable partner for global industrial intelligence.
